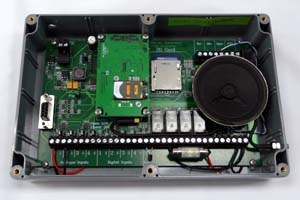

Radio and DTMF Remote Controller

Connects to an external radio or uses optional plug in GSM module to read eight inputs and control eight outputs at a remote site with full voice response.

Available in three versions:

• Professional GSM version with both radio and GSM options fitted
  NZ$750 (US$550 including worldwide shipping)
• Professional radio version with radio control only NZ$500
  (US$400 including worldwide shipping)
• Amateur radio kitset version with radio control only. The specially discounted kitset version is only available to licensed ham radio operators (callsign required and shipping must be to call book or QRZ.com address) with a maximum of two per person
  NZ$125 (US$100 including worldwide shipping)

Specifications

• Voice status of inputs and outputs
• Voice dictionary stored on standard SD card
• Simple process to add or replace words in any language
• Password protected operation, two levels, read status only and read/change status
• Four Analog inputs, 2.5V and 25V input range jumper selectable
• Four Digital inputs, internal pull-up resistor, ground to activate
• Dallas One-Wire interface for temperature measurement
• Four normally open relay outputs, can switch up to 3A loads
• Four FET outputs to switch up to 500mA at 12V
• Variable voltage output (DAC), can supply up to 1A depending on selected voltage
• Holtek HT9170 DTMF decoder
• Texas Instruments MSP430 microprocessor
• Audio and PTT interface for radio connection - isolated
• Optional GSM cellphone module
• 6-18V DC supply

The configuration of the controller can be done relatively easily by the end user with a PC. If you prefer to have Harvest Electronics program the unit for your application we will do that for US$50 and email you the finished file usually within 24 hours. Email info2@harvest.com for this service.

Support

The professional versions come with full telephone help desk and email support and 12 month warranty. Email info2@harvest.com for support or call Harvest Electronics (+64) 6 370 1991 during New Zealand business hours. The Ham kitset version has no warranty and is supported only by email from one of the hams at Harvest Electronics. Email info2@harvest.com, no telephone support available for the kitset version.

The manual is available in our support area

The C source code for the GNU TI MSP430 compiler is available on request for those who would like to add extra features. Any additional features added by users will be evaluated and included in future releases. All users (professional and ham radio) agree that the intellectual property in this product belongs to Harvest Electronics and you also agree to have lightning strike you if you steal the intellectual property for commercial use!

History

The Harvest DTMF controller was originally conceived as a fun Ham radio project but the huge effort involved meant that we would probably never have had the time to complete it after hours. So we have combined the radio and GSM cell phone features into a product which we have developed during work time. We are probably kidding ourselves but we like to think it might have some commercial applications to justify the time and money spent developing it.

Peter Munn ZL2LD the founder of Harvest Electronics wanted to give something back to the amateur radio hobby that launched his career in electronics so we have made the kitset version available at close to the cost of the components. The PCB was laid out by Gary Anderson ZL2VAR who is a design engineer at Harvest. Support is generally by Glenn ZL2TLD another one of the hams here at Harvest.
