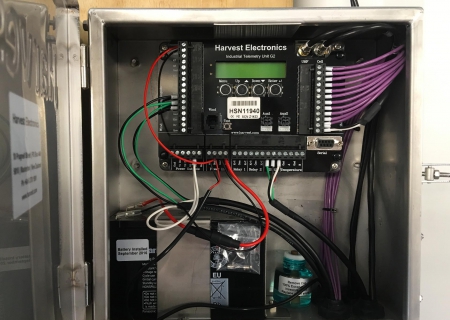

The Harvest ITU G2 (Industrial Telemetry Unit - Generation 2) is an ultra low-powered data logger with a built in modem (cellular or satellite), a range of inputs, and is the core of most Harvest solutions. All data is visible either publicly or privately on the Harvest Live Data portal.

Key Features

  • Harvest designed logger with integrated modem (cellular or satellite)
  • Range of input types for varying sensor and output types
  • Relay outputs for control solutions (can be remote controlled via smartphone)
  • Supports communication with wireless remotes - XLR, LRR, SRR
  • Global SIM card and dual band Harvest cellular antenna for automatic network switching
  • Stainless steel weather proof enclosure and mounting
  • Solar or mains powered with backup battery
  • SD Card for backup log storage

Example Configurations

  • Industrial Automated Weather Station (AWS) with meteorological grade sensors.
  • Entry level weather station with wireless remotes providing a network of temperature sensors (via SRRs or LRRs) with frost alarms configured.
  • Installed at pump shed to monitor pump state, flow meter. Connected effluent pump with feedback from a XLR mounted on the effluent irrigator with failsafe shutoff configured.

Technical Specifications

  • Eight analog inputs with ranges of 2V, 10V, 40V, or 4-20mA
  • Eight digital inputs with counting capability

  • SDI-12 port
  • Four software configurable excitation outputs
  • Two Dallas 1-wire bus inputs
  • Dedicated input for mechanical wind sensors
  • Two configurable latching relay outputs (controlled remotely and/or via logic)
  • Support for cellular or Iridium satellite modem modules with built-in GPS
  • LCD display with controls for debugging (eg  display input states)
  • Built in solar regulator for 18V panels, able to be mains powered
  • Remote configuration of logging and reporting intervals and input settings
  • We design and build these products so please talk to us if you need a custom solution
