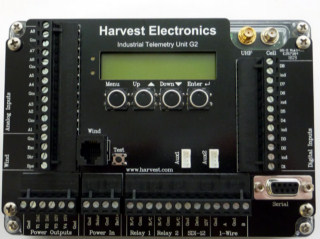

The Harvest ITU_G2 is a complete, ground up, redesign of our ITU platform. Drawing on our years of experience with our earlier designs our engineers have been able to produce a new product which enhances existing features, adds some desired new features, and reduces power comsumption. However, one of the greatest advances incorporated in the ITU_G2 is a whole new data model that significantly enhances flexibility.
- Eight analog inputs with software selectable ranges of 2V, 10V, 40V, or 4-20mA
- Eight digital inputs with counting capability; four with programmable edge filtering
- SDI-12 port
- Separate port for wind speed and direction sensors
- Four software configurable excitation outputs; two with programmable voltage; one with boosted voltage
- Two Dallas 1-wire bus inputs
- Two programmable relay outputs
- Solar battery charger for 12V VRLA batteries
- LCD display
- Extensive AT command set for configuration and control
- SD card for huge logging capacity
The Harvest ITU_G2 is configured using a set of AT style commands that form an extension to the standard GPRS modem command set. The ITU_G2 Command Reference documents these extended commands. For customers using our data collection service, we will take care of configuration for you, or alternatively, if you want to collect your data yourself, we can advise on suitable configuration options to achieve your objectives.
The Physical Characteristics page decribes the physical dimensions of the ITU_G2, its connector types and pinouts, and the electrical characteristics.
